Paya Connect

Paya Connect is a payment processor that handles credit card and ACH transactions at checkout and for invoice payments. The integration communicates with Paya's v2 REST API to authorize, capture, and query payment transactions.

How to set it up

Where to find it: Admin → Payments → Paya Connect

When you'd use this: When your store needs to process credit card or ACH payments through Paya Connect's gateway, either at checkout or when customers pay open invoices.

What you need first:

• A Paya Connect merchant account
• Your Developer ID from Paya
• Your User ID from Paya
• Your API credentials (for generating the hash key)
• A Product Transaction ID for the payment method you'll use
• A Location ID from your Paya account

Set it up:

1. Navigate to Admin → Payments → Paya Connect.
2. Enter your Developer ID in the developerId field.
3. Enter your User ID in the userId field.
4. Configure the authentication by providing the timestamp and hash-key values (these are dynamically generated for each request based on your API credentials).
5. Specify the Location ID (locationId) for the Paya location where transactions will be processed.
6. Enter the Product Transaction ID (productTransactionId) that corresponds to your payment method configuration in Paya.
7. Set the base API URL to https://api.sandbox.payaconnect.com for testing, or update to the production URL when going live.
8. Save your configuration.

Configuration options

Field	What it does	Default	Required
developerId	Your Paya Connect Developer ID, sent in request headers for authentication	None	Yes
userId	Your Paya Connect User ID, sent in request headers for authentication	None	Yes
timestamp	Timestamp value used for request authentication (dynamically generated per request)	None	Yes
hashKey	Hash key for request authentication, generated based on your API credentials	None	Yes
locationId	The Paya location where transactions will be processed	None	Yes
productTransactionId	The product transaction identifier configured in your Paya account	None	Yes
account_vault_id	Token ID for stored payment methods (used when charging saved cards)	None	No
transaction_amount	Amount to process in cents (e.g., 1000 = $10.00)	None	Conditional
transaction_api_id	Optional unique identifier for the transaction in your system	None	No
order_num	Order number to associate with the transaction	None	No
description	Human-readable description of the transaction	None	No
action	The transaction action type (e.g., "authonly", "sale", "authcomplete")	None	Yes

Using it day-to-day

1. At checkout: When a customer selects Paya Connect as their payment method, the integration creates a transaction via the createTransaction operation, sending card details or a saved account vault ID to Paya's API.

2. Authorization-only flow: The system can perform an "authonly" action to hold funds without capturing them immediately. The transaction is later completed using the authComplete operation with a PUT request to capture the authorized amount.

3. Invoice payments: When customers pay open invoices, the integration creates a new transaction linked to the invoice number via the order_num field.

4. Transaction queries: Admins and automated systems can retrieve transaction details using the getTransaction operation, which fetches the status and details of a specific transaction by its ID.

5. ACH payments: The integration supports ACH payments in addition to credit cards, using the same transaction creation flow with appropriate payment method configuration.

Troubleshooting

• Incorrect card number saved in ERP: If the last four digits of a credit card number don't match what's stored in your ERP (e.g., Sage X3), verify that the account_vault_id is correctly mapping to the tokenized payment method and that your ERP sync is pulling the correct masked card data from the Paya response.

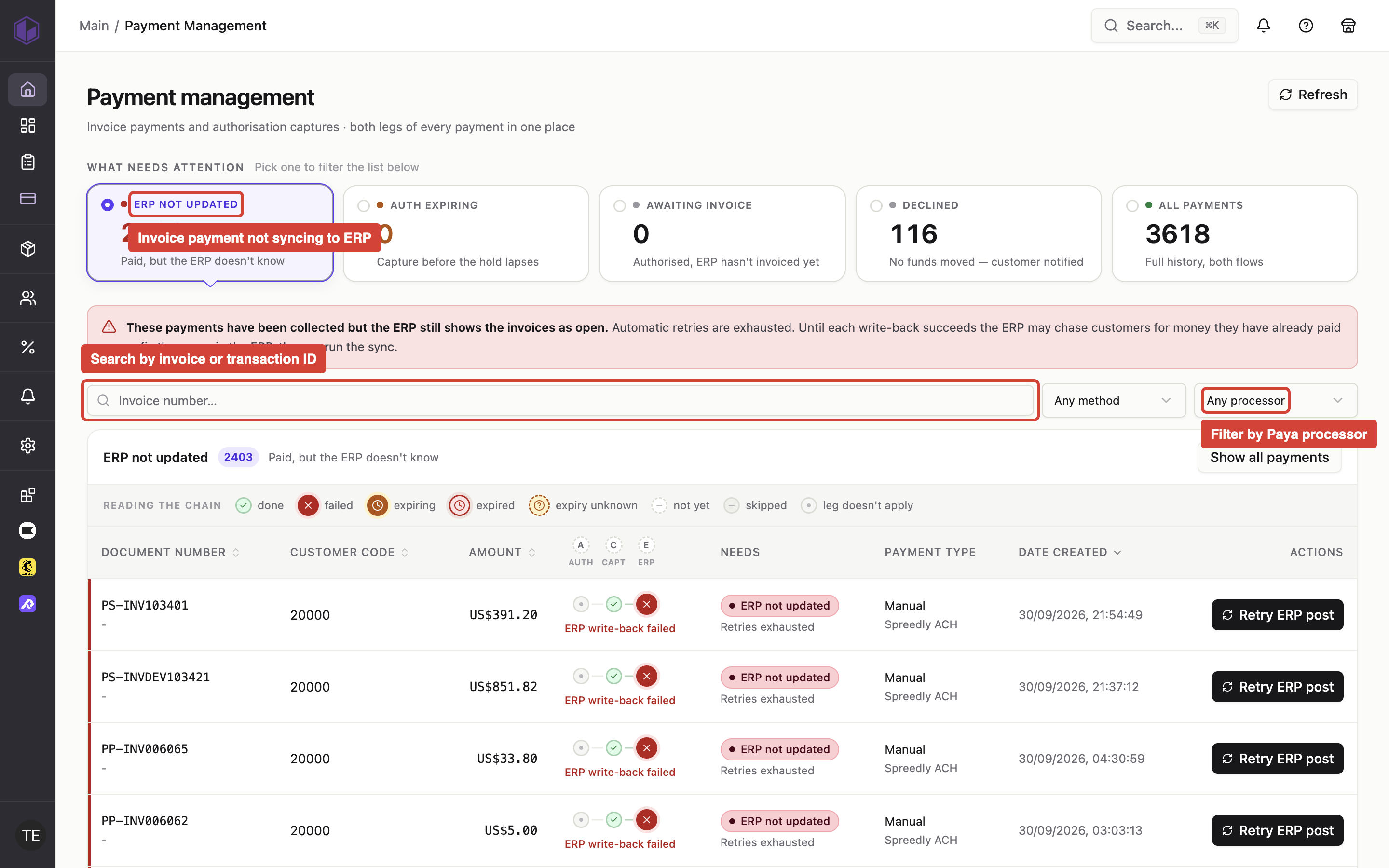

• Invoice payment not syncing to ERP: When a payment is marked as unpaid in your ERP despite being processed through Paya, check that the order_num or transaction_api_id field is correctly populated and that your ERP integration is listening for payment confirmation webhooks or polling transaction status.

• Authentication failures: If API requests return authentication errors, verify that the developerId, userId, timestamp, and hashKey are all correctly configured. The hash key must be regenerated for each request using the current timestamp and your API secret.

• Transaction amount mismatches: When capturing an authorization, ensure the transaction_amount in the authComplete call matches or is less than the originally authorized amount. Paya will reject captures that exceed the authorized amount.

• Blocked customers attempting payment: If your platform implements customer blocking rules, ensure that payment attempts from blocked customers are rejected before calling Paya's API to avoid creating orphaned transactions.
